Punched Hole Light Up Led Channel Letters Outdoor Giant Waterproof IP67

Product Description

Outdoor Jaint Punched Hole Lighted Up 3D Letter Sign Led Channel Letters

What is Punched Hole Led Letter Sign?

A punched hold led letter sign or logo is that sign board is punched with according dimension of holes where we could install led lights piece by piece. The light pitches depending on how tall you want install the sign, normally the sign installed taller, the light pitches could be comparatively larger, if lower, make the light pitches shorter. Like a standard channel letters, Punched Hole led letter or logo is popular for jaint dimensions, which are completed big commercial building or any land marks. This type of lettering garners its popularity through a unique lighting effect. At night, light emits right front of the letters and logo, the lights on the board likes stars dotted on to the sign board. they could be clearly viewed from very long distance compared with normal type led channel letters. Most of the sign and letters are installed outdoor and the led lights installed waterproof grade mostly above IP67.

An punched hole led channel letters may be spacified with a nature metal color appreance or with a brushed or polished finish. Other options for color include paint and finish. as well as optional fabrication finishes with a special features. A patina finish in teal or rust color are also available.

Spacifications

Sign Structures

Front part: stainless steel, aluminum,

Return: stainless steel, aluminum, acrylic

Return Finish: black painted matte or glowing.

Punched Hole Led Channel Letters Mounting Steps on Wall

1. Attach the 1:1 mounting template onto wall or any areas you want install the sign.

2. Find the drill holes on the template, drill 8mm dia holes in according depth.

3. Put each letters in position, screw mount each holes on wall one by one.

4. Pull out the wires from each letter to a place where you want connect it.

5. Connect the wires to the power supply 12v output side.

6. Plug in the power socket to test working.

Punched Hole Led Channel Letters Mounting Steps on Top of Building.

1. Making metal frames according to the dimmension of Led channel Letter.

2. Weld each letters on the frame in 1:1 proportion. Or screw mount each letters on frame in 1:1 proportion.

3. Mount the whole frame and letters on top of building.

4. Orginzed the wires to put them where you arrnage them.

5. Connect the wires to the power supply 12v output side.

6. Plug in the power socket to test working.

Our Advantages

1. The 3d letter signs we bend and welded from 1.5mm stainless steel or 2mm aluminum board which are tough to use.

2. The components we use are CE, ROHS, UR certificated.

3. All the 3d letter signs are well polished with high-end quality.

4. 3+ years warranty services for our customers.

5. 10-18 days delivery time to your address.

6. Standard exporting carton or Wooden boxes to make sure safe delivery.

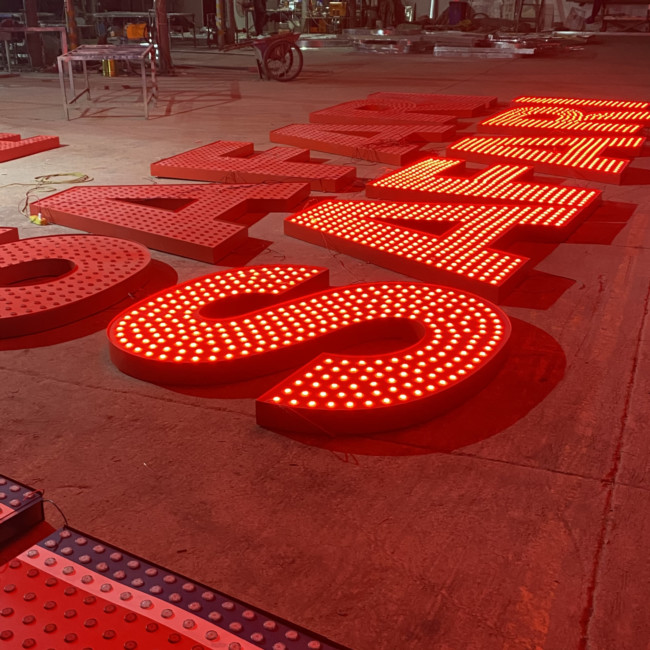

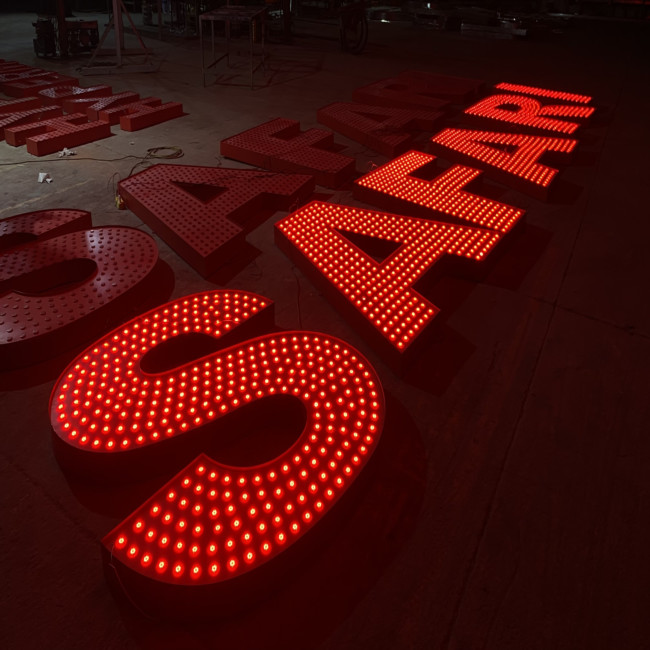

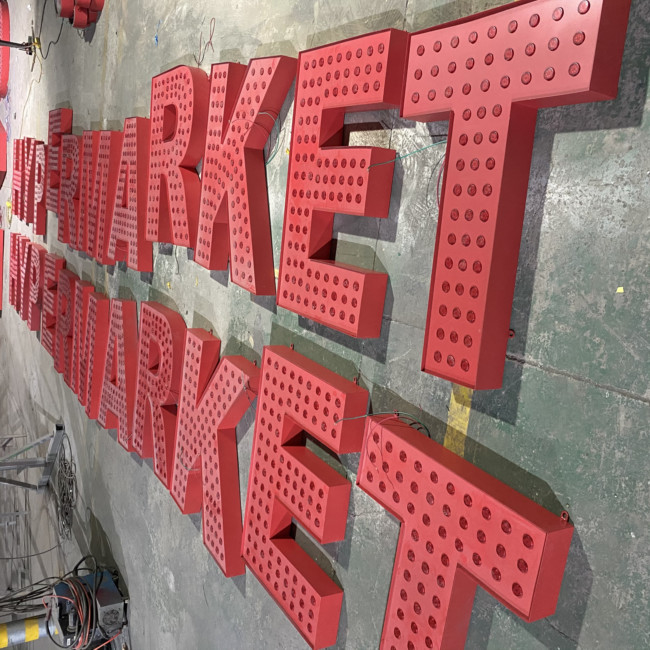

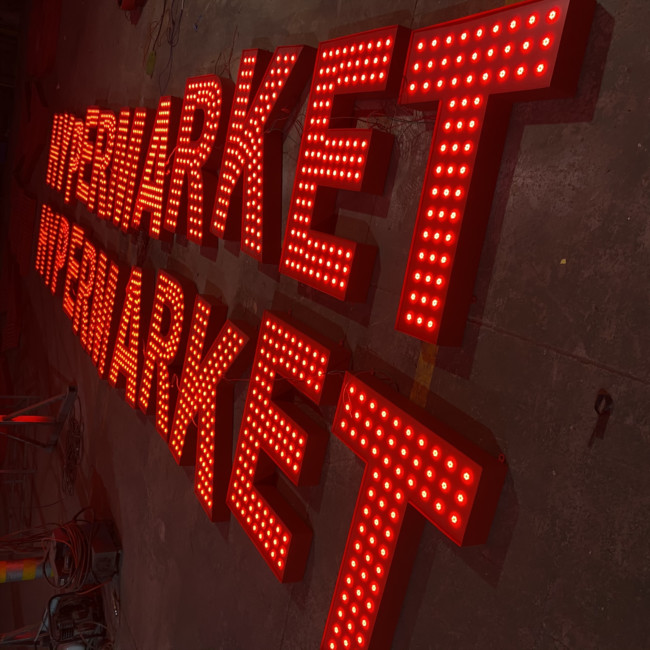

Product Detail
